GLC-BX40-UASFP
$31.00
The Cisco-compatible SFP transceiver provides up to 40km of 1000Base-BX throughput over single-mode fiber (SMF) using 1310nm-TX/1490nm-RX wavelengths via LC simplex connectors. This bi-directional unit must be used with another transceiver or network equipment of complementary wavelengths. It provides 1000BASE Ethernet connectivity options for Fast Ethernet, Telecom and Data Centers.
Quantity:

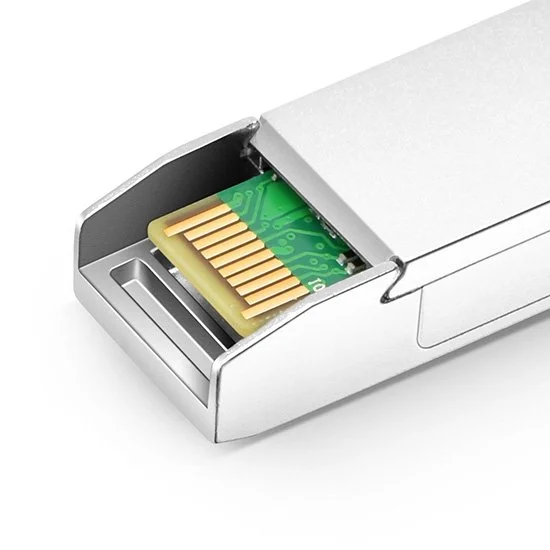

Cisco GLC-BX40-UA Compatible 1000BASE-BX SFP Transceiver Module (SMF, 1310nm-TX/1490nm-RX, 40km, LC, DOM)
Product Highlights
Max. Power Consumption 1W
Tested in Targeted Switches for Superior Performance, Quality, and Reliability
Double Your Bandwidth by Using Only One Fiber for Transmit and Receive
Hot Pluggable SFP MSA Compliant
FS BOX - Support Real-time Configuration
Digital Optical Monitoring Capability for Strong Diagnostic Capabilities
Compliant to IEEE 802.3z Gigabit Ethernet
Class 1 FDA Laser Safety and RoHS Compliant
| Key | Value | Key | Value |
|---|---|---|---|
| Part Number | GLC-BX40-UA | Vendor Name | FS |
| Form Factor | SFP | Max Data Rate | 1000Mbps |
| Wavelength | 1310nm-TX/1490nm-RX | Max Cable Distance | 40km |
| Connector | Simplex LC | Optical Components | DFB BiDi |
| Media | SMF | DOM Support | Yes |
| TX Power | -3~2dBm | Receiver Sensitivity | < -23dBm |
| Commercial Temperature Range | 0 to 70°C (32 to 158°F) | Protocols | Fast Ethernet - Gigabit Fibre Channel - MSA Compliant |
