GLC-FE-100LXSFP
$12.00
Cisco GLC-FE-100LX compatible SFP transceiver supports up to 10km link lengths over single-mode fiber (SMF) using a wavelength of 1310nm via an LC connector. Each SFP transceiver module is individually tested to be used on a series of Cisco switches, routers, servers, network interface card (NICs) etc. Featuring low power consumption, this industrial optic transceiver provides 100BASE Ethernet connectivity options for Fast Ethernet and Data Centers, suitable for both outdoor and indoor deployments.
Quantity:

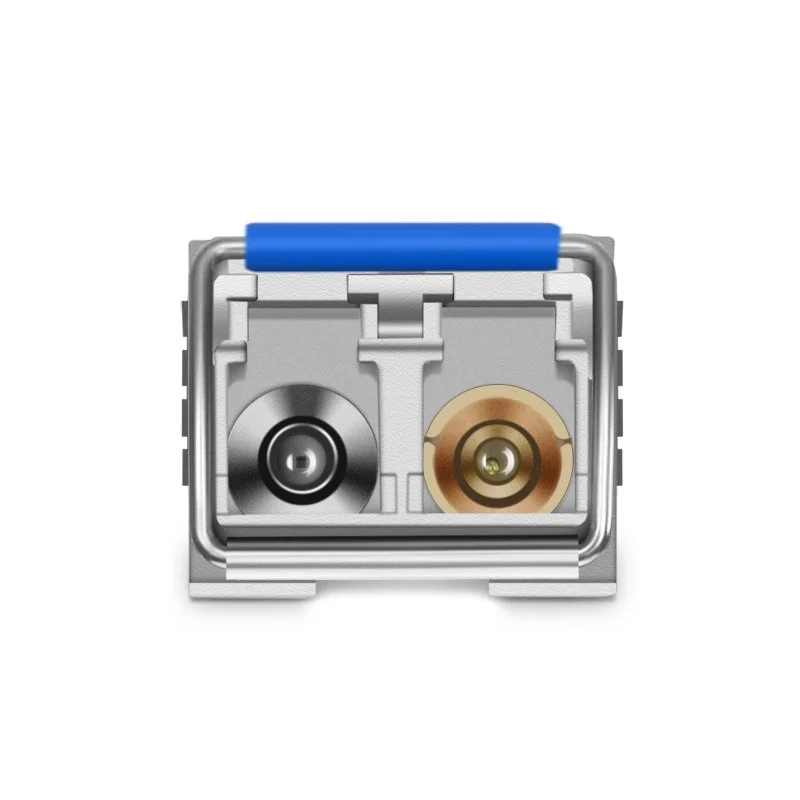

Cisco GLC-FE-100LX Compatible 100BASE-LX10 SFP Transceiver Module (SMF, 1310nm, 10km, LC, DOM)
Product Highlights
Max. Power Consumption 1W
Tested in Targeted Switches for Superior Performance, Quality, and Reliability
Hot Pluggable SFP MSA Compliant
Digital Optical Monitoring Capability for Strong Diagnostic Capabilities
FS BOX - Support Real-time Configuration
Compliant to IEEE 802.3ab Gigabit Ethernet
Class 1 FDA Laser Safety and RoHS Compliant
| Key | Value | Key | Value |
|---|---|---|---|
| Part Number | GLC-FE-100LX | Vendor Name | FS |
| Form Factor | SFP | Max Data Rate | 100Mbps |
| Wavelength | 1310nm | Max Cable Distance | 10km |
| Connector | Duplex LC | Optical Components | FP 1310nm |
| Media | SMF | DOM Support | Yes |
| TX Power | -15~-8dBm | Receiver Sensitivity | < -32.5dBm |
| Commercial Temperature Range | 0 to 70°C (32 to 158°F) | Protocols | IEEE802.3ab - GR-468 - MSA Compliant |
