SFP-100EX-31SFP
$23.00
Quantity:

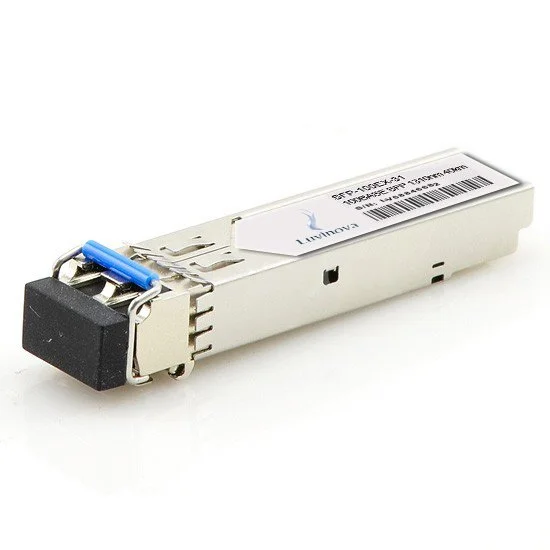

100BASE-EX SFP Transceiver Module (SMF, 1310nm, 40km, LC)
| Key | Value | Key | Value |
|---|---|---|---|
| Part Number | SFP-100EX-31 | Vendor Name | FS |
| Form Factor | SFP | Max Data Rate | 100Mbps |
| Wavelength | 1310nm | Max Cable Distance | 40km |
| Connector | Duplex LC | Optical Components | FP 1310nm |
| Media | SMF | DOM Support | Yes |
| TX Power | -5~0dBm | Receiver Sensitivity | < -34dBm |
| Commercial Temperature Range | 0 to 70°C (32 to 158°F) | Extended Temperature Range | -5 to 85°C (23 to 185°F) |
| Industrial Temperature Range | -40 to 85°C (-40 to 185°F) | Protocols | GR-468 - MSA Compliant |
