SFP-2GL2-55SFP
$121.00
Quantity:

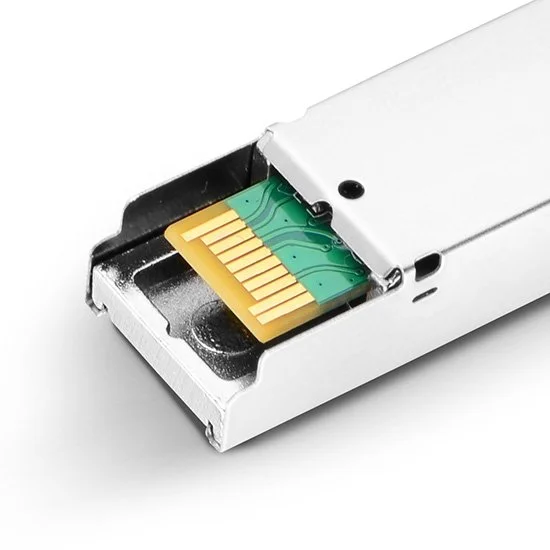

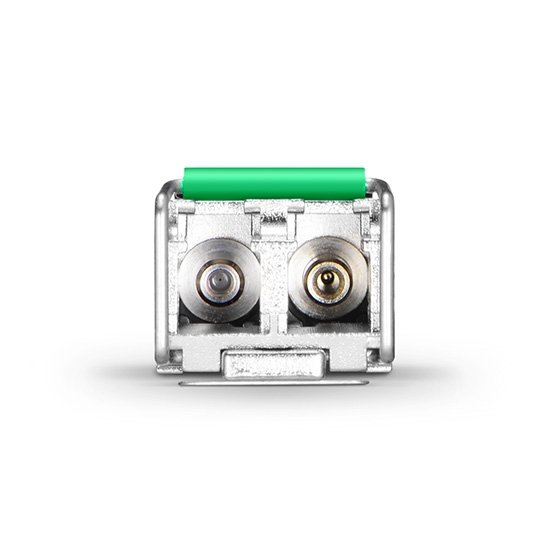

2G Fibre Channel SFP Transceiver Module (SMF, 1550nm, 80km, LC, DOM)
Product Highlights
Tested in Targeted Switches for Superior Performance, Quality, and Reliability
FC-PI 13.0 Compliance for 1.0625/2.125 Gbit/sec Operation
Provide in-order, Lossless Delivery of Raw Block Data
Used for Fibre Channel Storage Network Links in Data Centers
Hot-pluggable SFP+ MSA Form Factor
Digital Optical Monitoring Capability for Strong Diagnostic Capabilities
Class 1 Laser Safety and RoHS Compliant
| Key | Value | Key | Value |
|---|---|---|---|
| Part Number | SFP-2GL2-55 | Vendor Name | FS |
| Form Factor | SFP | Max Data Rate | 2.67Gbps |
| Wavelength | 1550nm | Max Cable Distance | 80km |
| Connector | LC duplex | Optical Components | DFB 1550nm |
| Media | SMF | DOM Support | Yes |
| TX Power | 2~7dBm | Receiver Sensitivity | < -21dBm |
| Commercial Temperature Range | 0 to 70°C (32 to 158°F) | Extended Temperature Range | -5 to 85°C (23 to 185°F) |
| Industrial Temperature Range | -40 to 85°C (-40 to 185°F) | Protocols | MSA Compliant |
