SFP56-SR-50GSFP56
$367.00
Generic Compatible 50GBASE-SR SFP56 transceiver supports up to 100m link lengths over OM4 MMF via a LC duplex connector. Digital Diagnostics functions are available via a 2-wire serial interface. The transceivers are compliant with the applicable requirements defined in SFF-8402, SFF-8472, IEEE 802.3cd, OIF-CEI-04.0, and RoHS-6 compliant. It is suitable for 50GBase Ethernet applications.
Quantity:

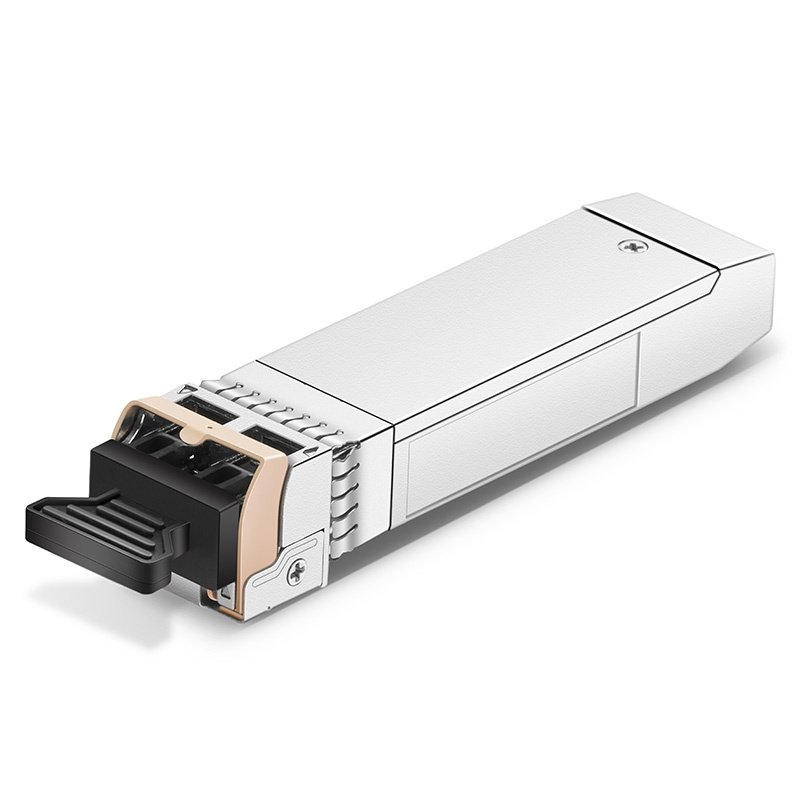

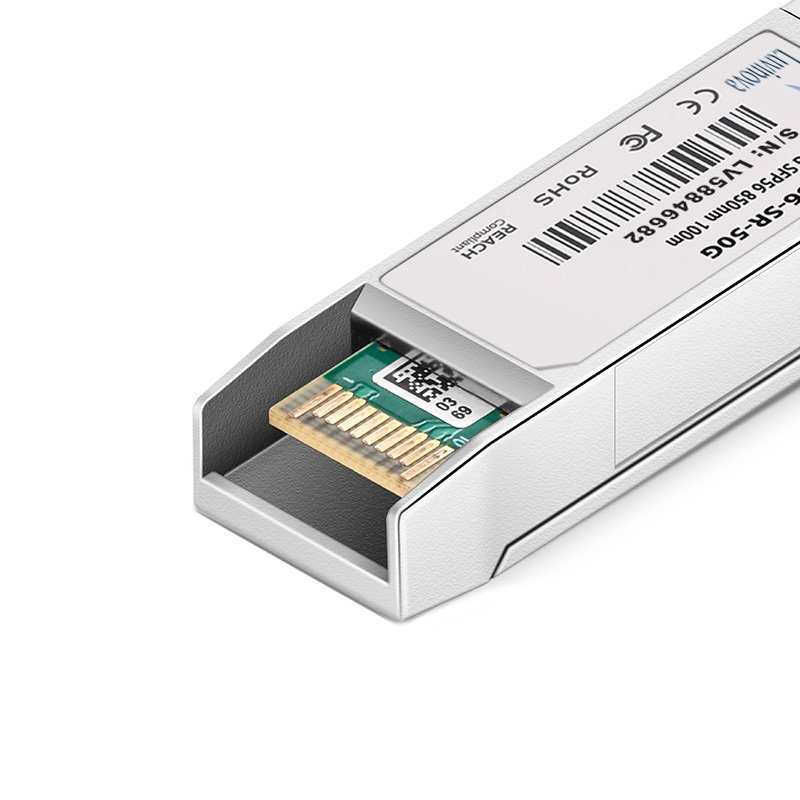

Generic Compatible 50GBASE-SR SFP56 Optical Transceiver Module (MMF, 850nm, 100m, LC, DOM)
Product Highlights
Semtech Chip，Max. Power Consumption 1.5W
Tested in Targeted Switches for Superior Performance, Quality, and Reliability
High-Speed Electrical Interface Compliant to IEEE 802.3cd
Hot Pluggable SFP56 MSA Compliant
Class 1 FDA Laser Safety
Digital Optical Monitoring Capability for Strong Diagnostic Capabilities
| Key | Value | Key | Value |
|---|---|---|---|
| Part Number | SFP56-SR-50G | Vendor Name | FS |
| Form Factor | SFP56 | Max Data Rate | 53.125Gbps |
| Wavelength | 850nm | Max Cable Distance | 100m@OM4 |

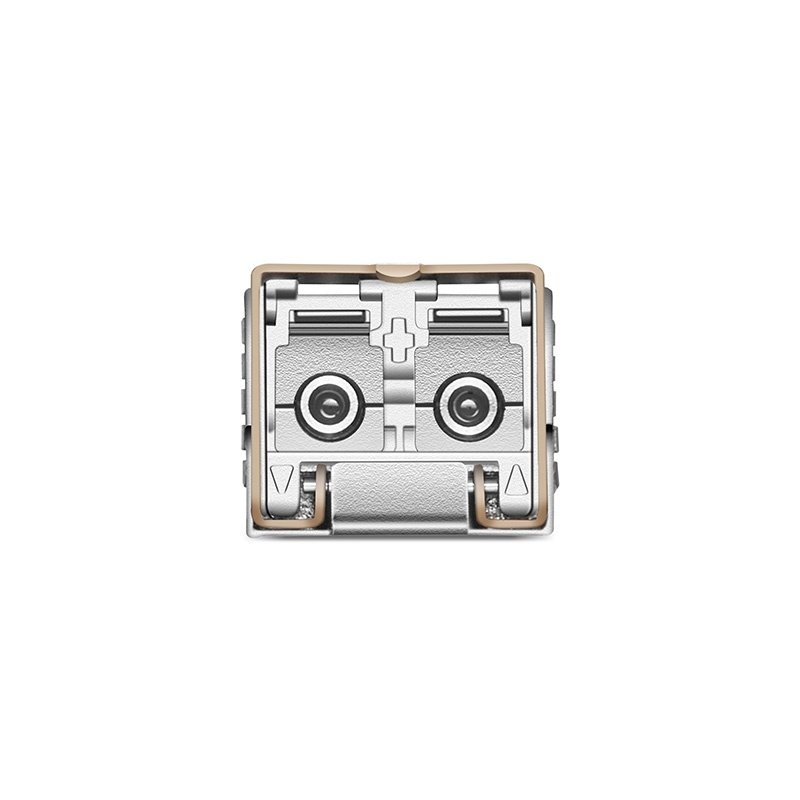

| Connector | Duplex LC | Media | MMF |
| Transmitter Type | VCSEL | Receiver Type | PIN |
| TX Power | -6.5~4dBm | Receiver Sensitivity | <-8.4dBm |
| Powerbudget | 1.9dB | Receiver Overload | 4dBm |
| Power Consumption | ≤1.5W | Extinction Ratio | ＞3dB |
| DDM/DOM | Supported | Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
| CDR (Clock and Data Recovery) | TX & RX Built-in CDR | Modulation Format | PAM4 |
| Protocols | IEEE802.3cd - SFF-8472 - SFF-8402 - SFF-8419 - OIF-CEI-04.0 | Warranty | 5 Years |
